Vertical Mill Setup Checklist: Diagnosing Repeatability Issues
- Check for inconsistent tool lengths and holder runout.
- Verify spindle warm-up cycle and thermal stability.
- Inspect drawbar force and collet condition.
Last Tuesday, a shop in Ohio called me about a Haas VF-2 that had been cutting good parts for three years. Suddenly, every fourth pocket on a fixture plate came in 0.003 inches oversize. The operator had already swapped tool holders and re-zeroed the work offset. The problem came back after lunch. That’s the kind of symptom that tells me the issue is deeper than a loose setscrew. Over the years, I’ve learned that a vertical mill setup checklist isn’t just a list of steps—it’s a diagnostic ladder. You start with what you see, then climb down to what the machine is telling you with measurements.

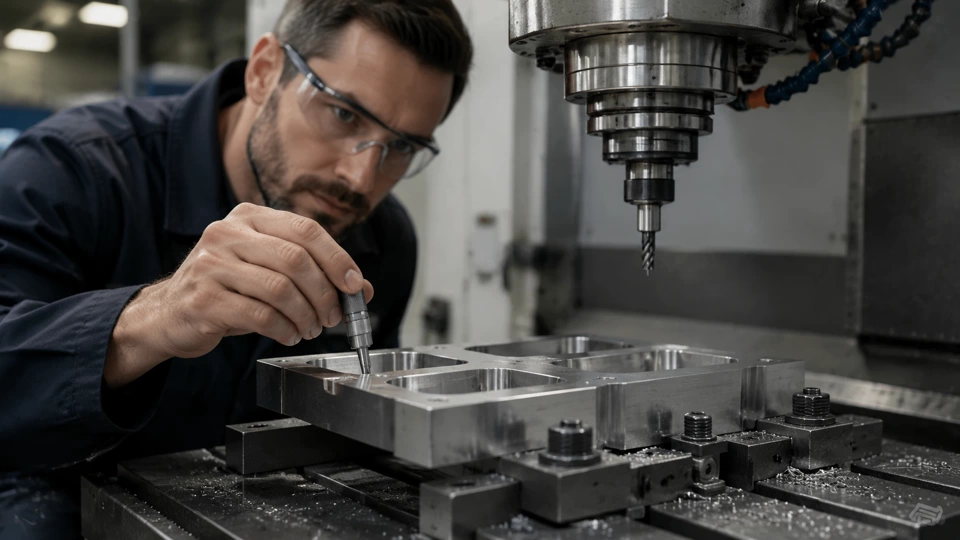

Symptom Checkpoint: Inconsistent Pocket Depths
First visible sign: tool tip wander
When an operator reports that only certain pockets are off, I ask them to run a single test cut at each station and measure with a depth mic. If the variation follows the spindle position rather than the fixture, I suspect the Z-axis repeatability is compromised. I’ve seen this happen when the Z-axis brake isn’t fully releasing, causing a slight droop during rapid moves. The first step in my vertical mill setup checklist is always to check the Z-axis brake release pressure with a gauge. On many machines, the brake should release at 80 psi minimum; anything below 70 psi can cause intermittent drag.
If the brake checks out, I move to the spindle alignment. A misaligned spindle can cause the tool to cut deeper on one side of the pocket. I use a test bar and a dial indicator at the spindle nose, then sweep the inside of a precision bore. The reading should be within 0.0002 inches per inch of bar length. I once found a machine where the spindle housing had shifted 0.0015 inches after a crash. The operator hadn’t noticed because the machine still made good parts on simple profiles. But the pocket depths told the real story.
Measurement Evidence: Thermal Drift and Spindle Growth
Second checkpoint: warm-up cycle compliance
After the symptom checkpoint, I look at thermal behavior. Many shops skip the warm-up cycle to save time, especially on second shifts. I’ve measured spindle growth of 0.002 inches in the first 20 minutes of operation on a cold start. That’s enough to scrap a tight-tolerance pocket. My vertical mill setup checklist includes a mandatory 15-minute warm-up at 5000 RPM with a 30-second pause every 5 minutes. I also install a thermocouple on the spindle housing and log the temperature rise. If the spindle grows more than 0.001 inches after warm-up, the bearing preload may be too loose or the lubrication is inadequate.
In one case, a shop in Ohio had a machine that would cut good parts for the first hour, then drift. I found that the spindle chiller was set to 70°F, but the ambient shop temperature was 85°F. The chiller couldn’t keep up, and the spindle housing expanded unevenly. After adjusting the chiller setpoint to 75°F and adding a thermal compensation routine, the drift disappeared. The operator now runs a thermal test every Monday morning as part of the setup checklist.
Deep Dive: Drawbar Force and Collet Condition
Third checkpoint: pull-stud and collet wear
When I see inconsistent tool retention, I go straight to the drawbar. A weak drawbar can cause the tool to pull out during heavy cuts, especially in the Z-axis. I use a drawbar force gauge to measure the clamping force. For a CAT40 spindle, the spec is typically 1800 to 2200 pounds. I’ve seen machines with only 1200 pounds because the Belleville washers were fatigued. The operator didn’t notice because the tool holder still clicked in, but the retention was marginal. Replacing the washer stack restored consistent clamping.
Collet condition is another hidden culprit. I’ve found collets with cracked tapers or embedded chips that caused runout up to 0.001 inches. The operator had been swapping holders but never inspected the collet itself. I now include a visual inspection of the collet taper under a magnifying glass in my vertical mill setup checklist. If I see any galling or discoloration, I replace the collet. A simple runout inspection with a test bar and indicator can catch this early. I recommend checking runout at the tool tip and at 4 inches from the collet nose; the difference should be less than 0.0005 inches.
Table: Symptom-Cause-Fix for Vertical Mill Setup Issues
Field reference for common problems
| Observed signal | Likely layer | Field check |
|---|---|---|
| Inconsistent pocket depth | Z-axis brake drag | Measure brake release pressure; should be >80 psi |
| Thermal drift after warm-up | Spindle preload setup | Log spindle housing temperature; growth >0.001″ indicates preload issue |
| Tool pull-out during cut | Drawbar force low | Use drawbar force gauge; CAT40 target 1800-2200 lb |
| Runout at tool tip | Collet or holder wear | Inspect collet taper; replace if galled. Check runout at 4″ extension |
Escalation Cue: When to Call for a alignment check Check
Fourth checkpoint: geometric accuracy
If the symptom ladder leads you to persistent misalignment after checking brake, thermal, and drawbar, it’s time to perform a full alignment check check. I use a precision square and a dial indicator to check the spindle axis perpendicularity to the table in both X and Y. The ANSI standard for a vertical mill is 0.0005 inches per foot of travel. I’ve seen machines that passed a simple test bar check but failed the square test because the head was tilted. In one case, the head had been bumped during a tool change and was out 0.002 inches over 12 inches. That explained the tapered pockets.
I also check the alignment check relative to the Z-axis way covers. If the covers are binding, they can push the head slightly off. I always run the Z-axis full travel and listen for scraping. A simple visual check of the way cover seals can save hours of troubleshooting. I include this in my vertical mill setup checklist as a quarterly task. Most shops ignore it until they see a pattern of bad parts.
Final Field Note: Building a Repeatable Setup Routine
Fifth checkpoint: documentation and handoff
After you’ve climbed the symptom ladder and fixed the root cause, the last step is to document what you found. I keep a logbook at each machine with the date, symptom, measurement, and fix. This becomes the maintenance handoff record for the next shift. I’ve seen shops reduce repeatability issues by 60% just by enforcing a consistent setup checklist that includes thermal logging and drawbar checks. The key is to make the checklist a living document—update it when you discover a new failure mode.
For example, after the Ohio shop added a weekly final measurement to their checklist, they caught a collet crack before it caused a scrap part. The operator now initials each step, and the supervisor reviews the log every Friday. That kind of discipline turns a reactive repair culture into a proactive one. My advice: start with the symptom ladder, use the table as a quick reference, and never skip the warm-up. Your spindle will thank you.
This article is informational and based on my field experience as Carl M. Hendricks, CNC Maintenance Advisor. Always refer to your machine manual for specific tolerances and procedures.
